XH-100 Mounting Arm

XH-100 Mounting Arm

The XH-100 Mounting Arm is designed for mounting your LM25 LED from Seatorch.

For rimmed or rimless tanks, the XH-100 Mounting Arm are fully adjustable, came with two different length slide bar. Those extension slide bars allows users with wider tanks to mount their LM25 exactly where they want to.

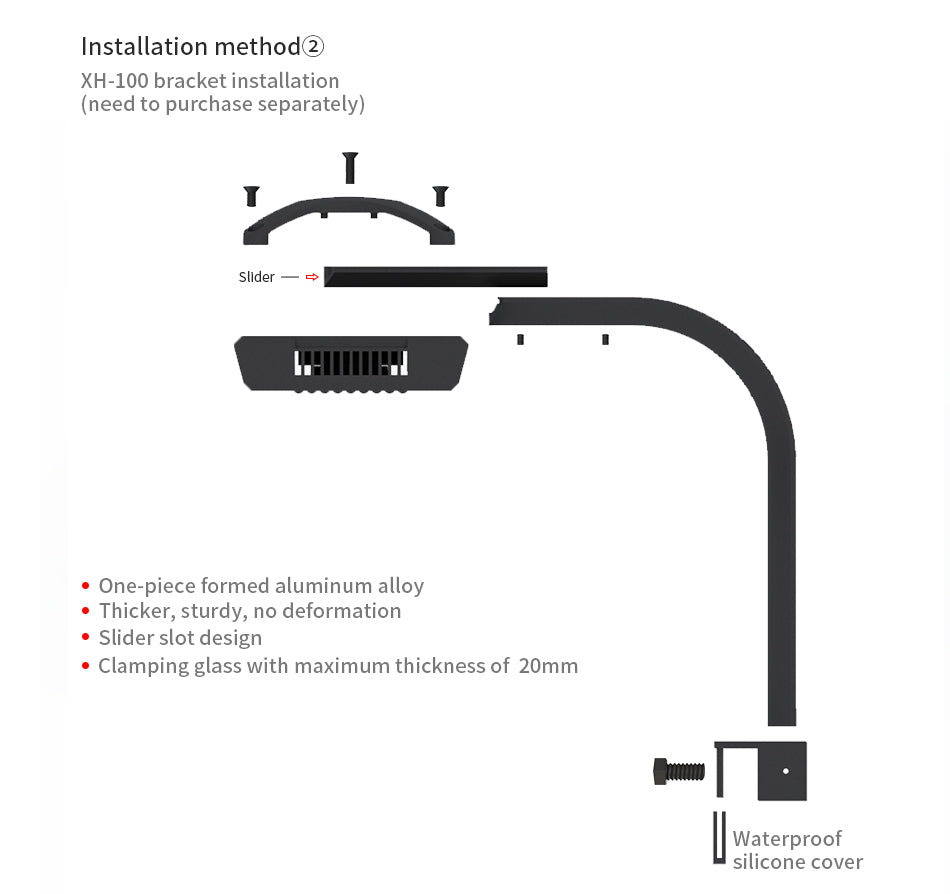

Offer you a better cable management. Support maximum glass thickness 20mm

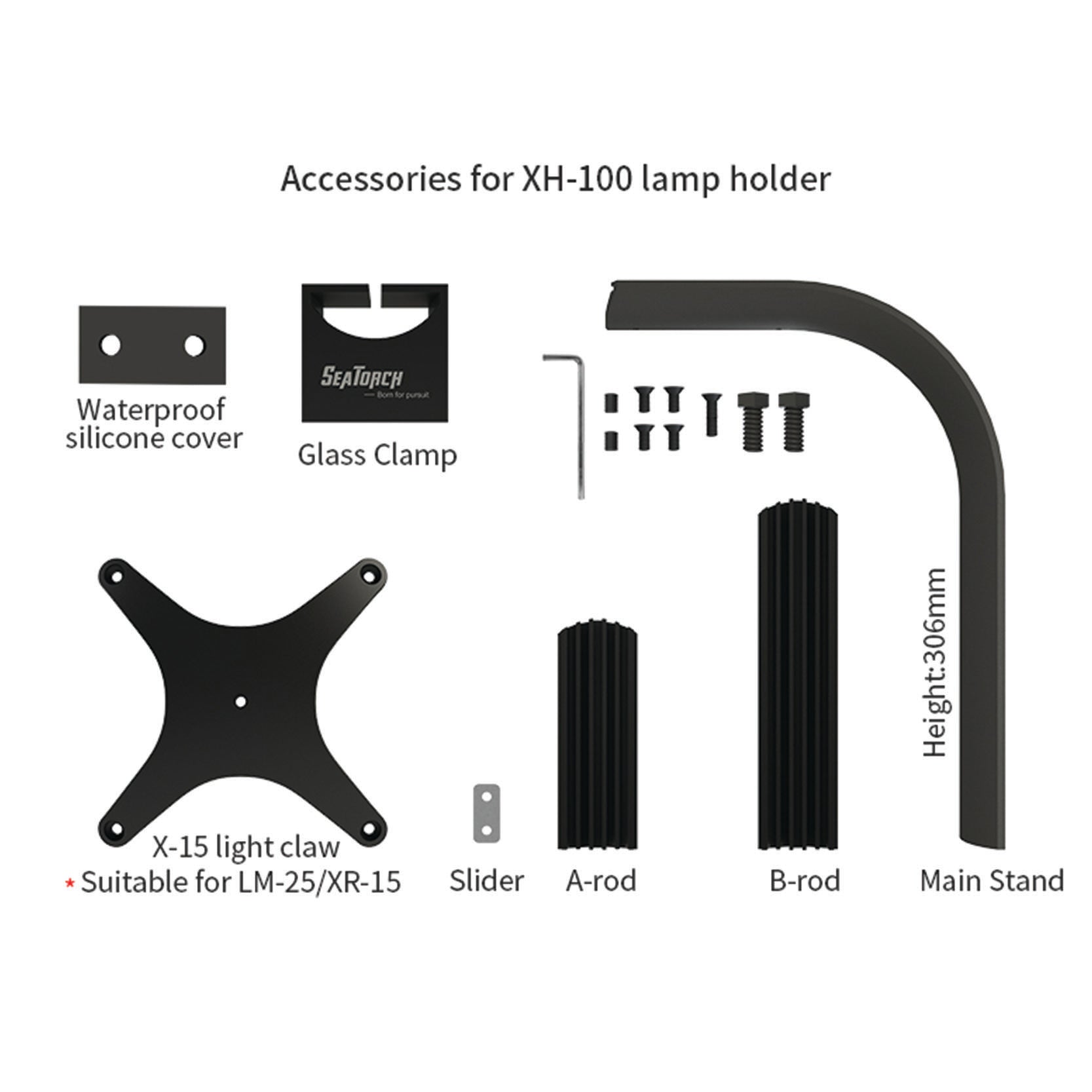

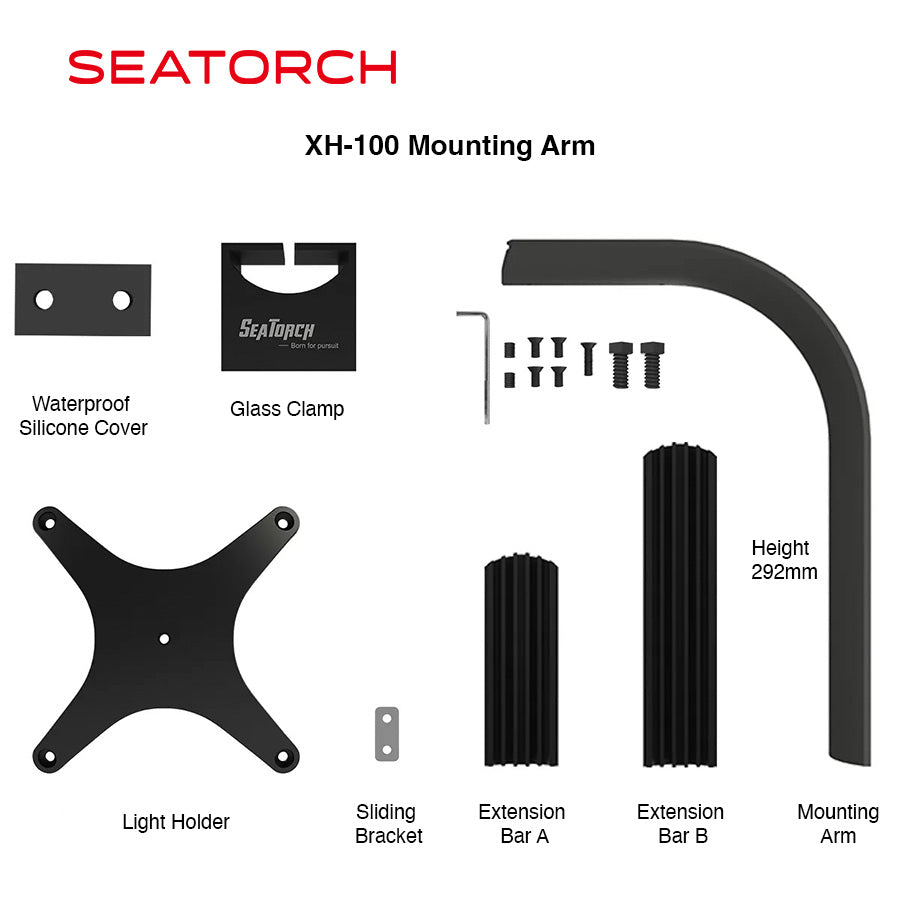

What's in the Box

Aluminium arm x 1

Ultra-thick rimless clamp x 1

Extension slide bar A rod x 1

Extension slide bar B rod x 1

X-15 light holder x 1

Waterproof clamp cover x 1

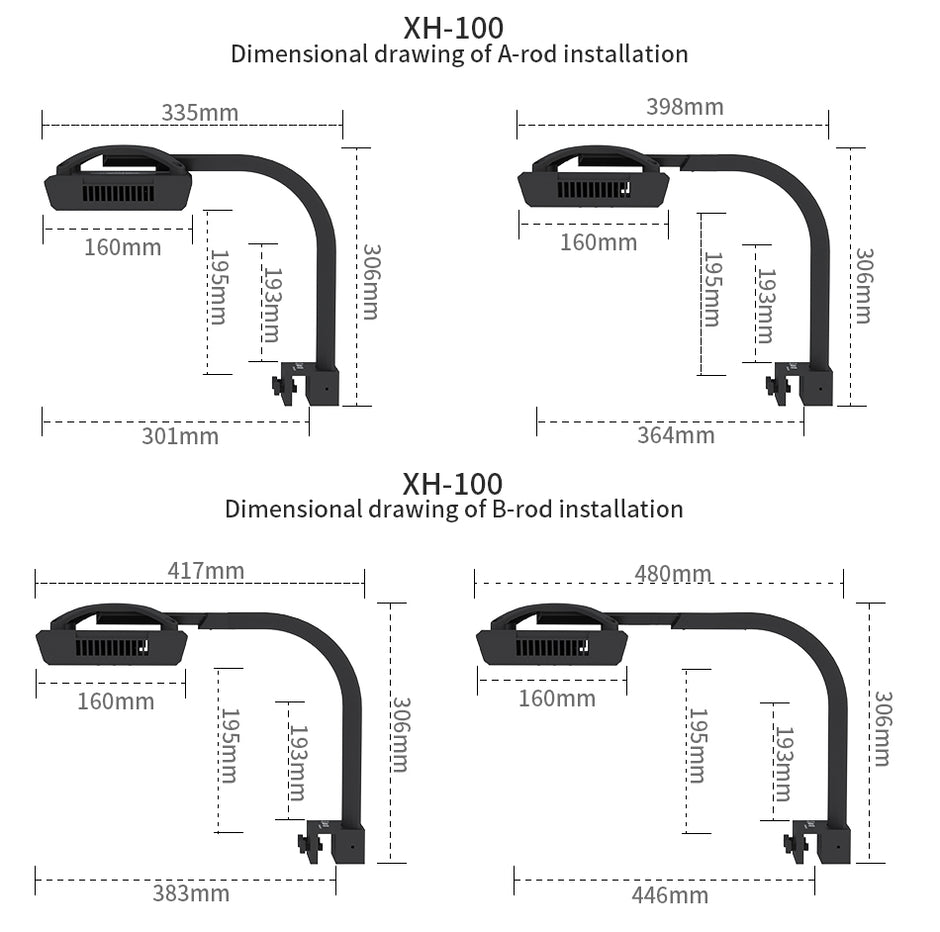

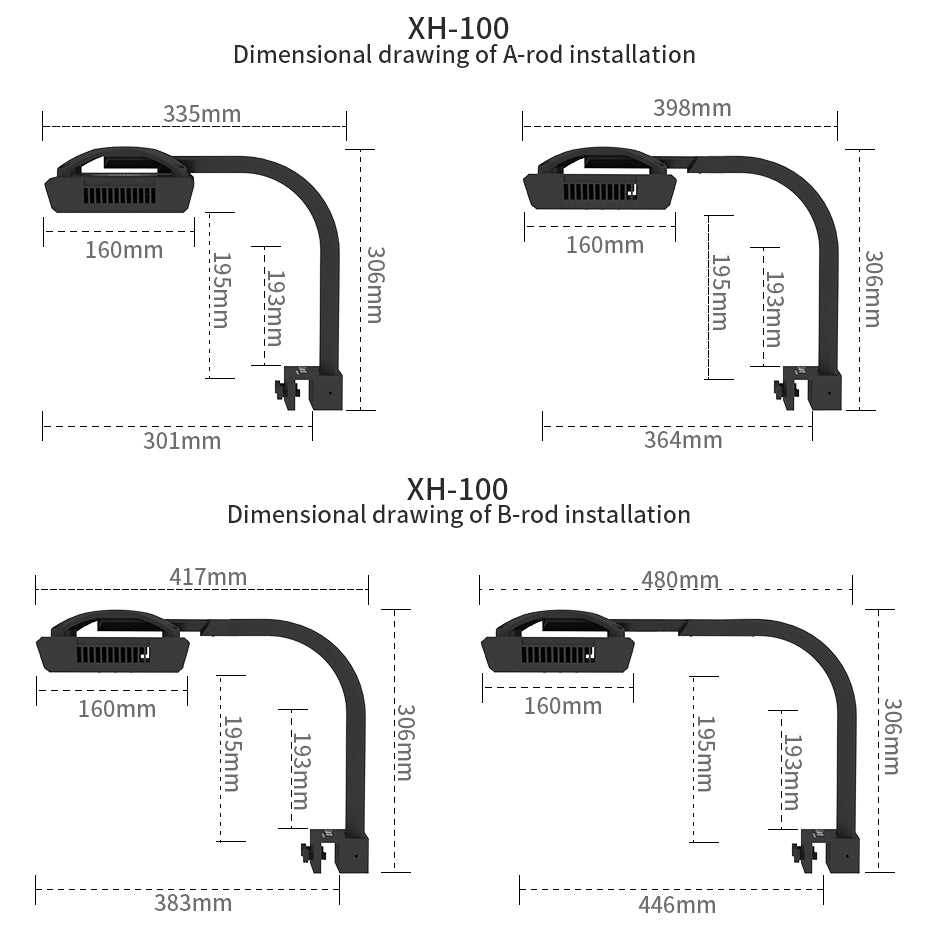

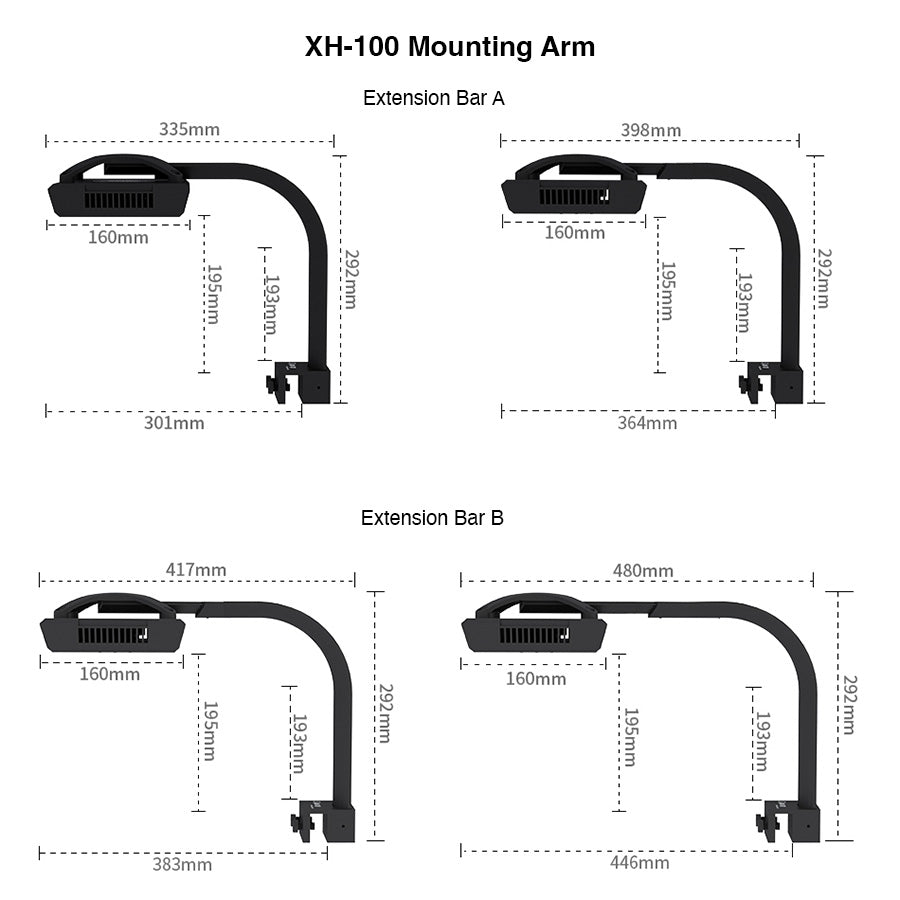

*Extended Slide Bar A rod extends the reach of LM25 from 301mm to 364mm(distance from the back of the tank to the lamp).

*Extended Slide Bar B rod extends the reach of LM25 from 383mm to 446mm (distance from the back of the tank to the lamp).
